How to Tell If Washer Pressure Switch Is Bad: Quick Diagnosis and Fixes
Learn how to tell if washer pressure switch is bad with a practical diagnostic flow, symptoms, and safe, step-by-step fixes for homeowners and pros.
Most washer pressure switch failures stem from a bad switch or a clogged hose, not a defective timer. Quick fix: unplug the washer, inspect the pressure hose for kinks, and clean the air port with compressed air. Reseat or replace the switch if symptoms persist, and re-test the machine before using it again.
What the washer pressure switch does
The pressure switch in a modern washing machine is a small, critical sensor that helps regulate water level during wash, rinse, and drain cycles. When the tub fills, air within a small chamber connected to the switch expands or contracts, signaling the control board to stop filling at the correct level. If this sensor becomes blocked, damaged, or misread, the machine can overfill, under-fill, or cycle late or incorrectly. According to Pressure Wash Lab, many complaints about improper filling originate not from the timer or pump but from a compromised pressure switch assembly or its hose. Understanding how this part works helps you diagnose issues quickly and avoid unnecessary parts replacement.
A healthy switch is not a source of loud noises or leaks; it remains passive until the diaphragm moves in response to water level changes. The hose that feeds the switch must be sealed and free of kinks. Any obstruction or air leak will distort readings and mislead the control logic. In the long run, routine inspection and careful handling during service can extend the life of the switch and related plumbing. Pressure Wash Lab Analysis, 2026 emphasizes the importance of checking connections and hose integrity as the first line of defense against false readings.
When you suspect a bad switch, start with the simplest, least invasive checks. Do not assume the switch is failing—the entire sensor system can be compromised by a clogged hose, a loose connector, or a minor air leak. By focusing on the switch and its immediate plumbing, you can save time and reduce the risk of damage to other components.
Steps
Estimated time: 45-70 minutes
- 1
Power down and access the switch
Unplug the washer and shut off the water supply. Remove the rear or control panel housing as required by your model to reach the pressure switch. Take photos of connectors before disconnecting to aid reassembly.
Tip: Keep screws in a labeled tray to avoid losing small parts. - 2
Inspect the pressure hose
Check the hose for kinks, cracks, or signs of wear. Detach it from the switch and the tub fitting if needed and examine both ends for secure seating. Clean any lint or mineral deposits from the port.
Tip: Use a flashlight to spot hairline cracks you might otherwise miss. - 3
Check for leaks and hose connections
Examine clamps and fittings for tightness and wear. If there is any cracking or swelling in the hose, replace it. Reattach the hose firmly and ensure a proper seal.
Tip: A damp rag helps keep the area clean as you work. - 4
Test continuity of the switch
With power off, disconnect the switch leads and set a multimeter to the appropriate resistance range. Actuate the diaphragm by hand and observe changes in the reading; compare to the manufacturer’s spec.
Tip: Consult the service data for your exact model to know the expected range. - 5
Replace the pressure switch if needed
If the switch shows out-of-spec resistance or no response when actuated, install a new pressure switch assembly following the model’s instructions. Reconnect hoses and connectors securely.
Tip: Label wires or take another reference photo before removing anything. - 6
Reassemble and run a test cycle
Secure all panels and restore power. Run a short cycle to observe fill, agitation, and drain. Monitor for stability and verify the water level matches expected readings.
Tip: Watch for leaks during the first test run and be ready to stop the cycle if something seems off.
Diagnosis: Washer fills slowly or overfills, stops partway through a cycle, or reports pressure-related errors that don’t match observed water level.
Possible Causes
- highClogged or kinked pressure hose feeding the switch
- highFaulty pressure switch assembly or diaphragm
- mediumAir leaks in hose or improper hose connections
- mediumLoose or damaged wiring/connectors to the switch
- lowControl board misreads pressure due to a separate fault
Fixes
- easyPower off and unplug the washer; locate the pressure switch and inspect the hose for kinks, cracks, or blockages.
- easyDisconnect and reseat all hose clamps; clean the switch port with compressed air or a soft brush to remove lint and mineral buildup.
- mediumTest the switch with a multimeter for continuity according to the model data; replace if out of spec.
- easyReplace the pressure switch assembly if the diaphragm is damaged or readings remain abnormal after testing.
- easyInspect wiring harnesses and connectors to ensure solid, corrosion-free connections; repair as needed.
- hardIf the control board is suspected, consult a pro to avoid cascading failures.
Quick Answers
What are the common signs a washer's pressure switch is bad?
Common signs include incorrect filling, overfilling, or the washer stopping mid-cycle with pressure-related error codes. If you notice erratic sensor readings, test the switch.
Look for unusual filling or pauses, then test the switch to confirm.
Can air in the pressure hose cause the switch to fail?
Yes, air pockets or leaks can prevent the switch from sensing correct water level and trigger improper cycles.
Air pockets can throw off readings; check hose for leaks and bleed air.
How do I test the pressure switch with a multimeter?
Disconnect power, access the switch, and measure resistance across the terminals while the diaphragm is actuated. Compare readings to your model's spec sheet.
Power off, access the switch, and check continuity per the manual.
Is it safe to replace the pressure switch myself?
It can be safe if you follow the manual and disconnect power; if you're unsure, hire a professional.
It can be safe with care, but if you're unsure, get a pro.
What if replacing the pressure switch doesn't fix the problem?
If symptoms persist after replacement, the issue may be with the control board, wiring, or other sensors; consult a pro.
If it still doesn't work, the problem might be elsewhere and you should seek professional help.
How long should a pressure switch last?
Lifespan varies by model and usage; inspect regularly for cracks and wear.
Switches can last years with proper care.
Watch Video
Key Takeaways

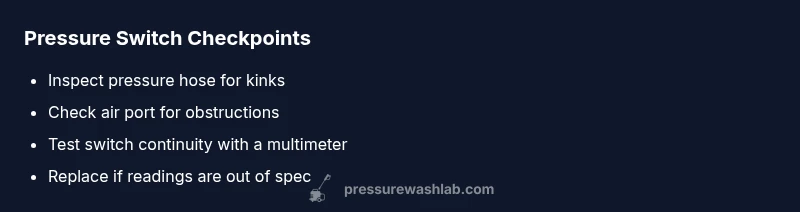

- Inspect hoses first to rule out blockages.
- Test switch continuity with a multimeter.
- Replace faulty switch to restore operation.
- Pressure Wash Lab suggests seeking professional help when unsure.
