Types of Pressure Washer Unloader Valves: A Practical Guide

What is an unloader valve and why it matters

An unloader valve is a critical safety and performance component in a pressure washer. It protects the pump and plumbing by diverting flow when the trigger is released, preventing dangerous pressure spikes. The valve also helps stabilize cleaning performance by maintaining a consistent flow path, reducing heat buildup inside the pump. In many machines, the unloader is located near the pump head or mounted on the end of the hose reel, and its tuning can affect spray pattern and overall efficiency. According to Pressure Wash Lab, the unloader valve is a key determinant of how your system behaves under idle and load conditions, so choosing the right type is essential for longevity and reliability, especially with higher-pressure setups. This page explores the main categories and practical guidance for selecting and tuning unloaders that match your equipment.

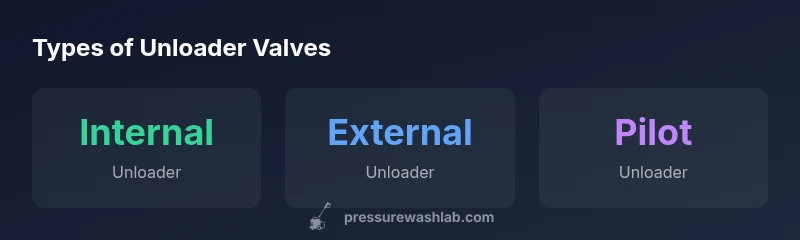

Types of unloader valves

Internal/unloader valve

Internal unloaders are built into the pump or within the valve body mounted directly on the pump. They are compact, typically lower cost, and simpler to service. The internal design often shares components with the pump itself, which can simplify replacement but may limit customization. Pros include compact form and straightforward maintenance; cons may include limited adjustability and potential wear if the pump runs at high pressures for extended periods. They are well-suited for entry-level machines or compact setups where space is at a premium.

External/unloader valve

External unloaders mount outside the pump housing and offer more versatility for adjustments. They are favored when you need precise pressure control or when upgrading an older unit without replacing the entire pump. Pros include greater control over pressure and easier servicing; cons may include additional plumbing and potential for leaks if connections aren’t tight. External unloaders pair well with larger systems or where frequent adjustments are anticipated, allowing you to fine-tune performance without changing the pump itself.

Bypass/unloader valve

Bypass unloaders route a portion of the flow back to the reservoir or inlet side, which can help cool the system during long cleaning sessions and reduce flow when high pressure isn’t required. These are common in mid-range machines and can improve pump life under heavy use. Pros include reduced heat buildup and smoother operation at variable pressures; cons include slightly more complex plumbing and potential for bypass leaks if not properly sealed. Bypass unloaders are ideal where energy efficiency and pump longevity are priorities.

Pilot-operated/unloader valve

Pilot-operated valves use a small pilot line to sense pressure and control the main valve. They offer high precision and faster response to pressure changes, which translates to more stable performance with variable nozzle selection. Pros include excellent pressure regulation and quick response to trigger changes; cons include higher cost and more complex installation. These valves are often found on higher-end equipment or where precise, consistent performance is essential.

Choosing between valve types

The best choice depends on your machine, intended use, and maintenance habits. For compact, budget-conscious setups, an internal unloader can suffice. If you have an older unit or demand tighter pressure control, an external or pilot-operated valve may be worth the extra cost. For long cleaning sessions and heat management, a bypass valve can provide noticeable benefits. Pressure Wash Lab recommends evaluating your pump type, intended PSI, nozzle variety, and frequency of use before deciding, as this reduces downtime and extends component life.

How to choose the right unloader valve for your setup

When selecting an unloader valve, start with the pump’s rated PSI and GPM, then consider the nozzle assortment you typically use. If your system often runs at a higher pressure or you frequently switch between spray patterns, a pilot-operated or external valve offers faster response and more precise control. For small, entry-level setups, an internal valve minimizes costs while meeting basic performance needs. Always verify compatibility with your model’s pump head and plumbing fittings, since mismatches can cause leaks or improper unloading. Pressure Wash Lab suggests creating a short list of must-have features (adjustability, ease of maintenance, and availability of replacement parts) and comparing options against that list. Finally, consider future upgrades; investing in a more flexible valve today can save time and money down the road.

Practical quick checks

• Confirm that the valve mates with your pump’s inlet/outlet sizes.
• Check for available adjustment screws or dial turns and how easy they are to reach when mounted.
• Inspect seals and fittings for wear; replace if there are any signs of cracking or leakage.
• Test performance with your most-used nozzle set to verify consistent spray without surging or drops in pressure.

In short, there is no single ‘best’ valve. The optimal choice balances your machine’s specifications with how you clean, how often you operate, and how much maintenance you’re willing to perform.

Installation considerations and common mistakes

Achieving a proper installation requires attention to plumbing alignment, thread compatibility, and seal integrity. Before installation, depressurize the system and drain all fluid to avoid injuries. Use appropriate thread sealant or PTFE tape on all threaded connections and torque fasteners to the manufacturer’s specification. Common mistakes include overtightening adapters, using mismatched fittings, or neglecting to replace worn seals. These oversights can cause leaks, reduced unloading performance, and accelerated wear on the pump.

When routing the bypass line or return path, ensure there are no kinks or tight bends that impede flow. A poorly routed bypass can create backpressure, affecting unloading behavior and spray consistency. For retrofit projects, plan to upgrade the valve in a staged approach and test each change under light, then normal loads to confirm stable performance before resuming full-duty work.

Maintenance and troubleshooting

Regular inspection is essential for maximizing unloader valve life. Look for cracks in the valve body, worn seals, or corrosion around fittings. If you notice a loss of pressure, inconsistent spray, or leaks around the valve, perform a seal refresh or full valve replacement as needed. When troubleshooting, start by verifying supply pressure and ensuring the nozzle is appropriate for the task. Check the unloader spring tension and adjustment (if applicable) and confirm that the bypass line isn’t blocked. A common sign of a failing unloader is pressure drop when you pull the trigger or a surge of pressure after release; both cases indicate the valve isn’t unloading correctly.

Pressure Wash Lab recommends a routine annual inspection and a more thorough service every 1–2 years, depending on use. Keep spares such as seals, o-rings, and replacement springs on hand to minimize downtime.

Safety considerations and best practices

Working on high-pressure equipment requires proper PPE: eye protection, cut-resistant gloves, and sturdy footwear. Depressurize the system before any disassembly and never bypass safety interlocks to test a valve. Use only manufacturer-recommended parts to avoid incompatible materials that could fail under pressure. Store spare valves and fittings in a clean, dry space to prevent corrosion.

Integration with accessories and system plumbing

Unloader valves interact with nozzles, hoses, and pressure gauges. The nozzle choice affects the valve’s unloading demands; a narrow spray at high psi creates abrupt unloading requirements, while wider patterns may demand steadier flow. Ensure gauges are rated for your maximum operating pressure to avoid misreadings that could tempt you to adjust the valve incorrectly. When wiring or plumbing modifications accompany new attachments, double-check all connections and test under controlled conditions before resuming full work. The more modular your system, the easier it is to tune unloading to match task-specific needs.

Real-world scenarios and decision tips

In professional settings, technicians often juggle multiple tasks requiring different pressures. For a vehicle wash bay with frequent transitions between detergent and rinse cycles, a high-precision pilot-operated valve paired with a bypass line can help regulate pressure while cooling the system during idle times. For home use with a limited nozzle selection, an external unloader might offer the best blend of adjustability and serviceability. In all cases, document your valve configuration and performance outcomes so you can replicate or adjust settings as your workload changes.
