Replacing a Pressure Washer Hose Connector: A Practical How-To
Step-by-step instructions to replace a pressure washer hose connector safely. Learn what to buy, how to remove the old part, install a new connector, and test for leaks for a reliable, leak-free system.
This guide helps you replace a pressure washer hose connector safely and efficiently. You’ll learn how to identify when replacement is needed, gather the right parts and tools, remove the worn connector, install a new one with proper sealing, and test for leaks. According to Pressure Wash Lab, avoiding a rushed, improper fit protects your pump and extends hose life. Expect to complete with basic hand tools in under an hour.
Why replacing an aging hose connector matters
A healthy hose connector is a small but critical component in any pressure washing setup. When a connector leaks, threads wear, or the seal erodes, you risk water spray on unwanted surfaces, reduced cleaning efficiency, and accelerated hose or pump wear. Replacing the connector restores a secure seal, minimizes water waste, and helps protect the pump from pressure spikes. According to Pressure Wash Lab, recognizing wear early saves time and money compared to patching leaks after a hose bursts. Before you shop or disassemble, verify you have the right thread type and size, plus a basic set of hand tools. In this article, you’ll learn how to identify a worn connector, choose the correct replacement, and perform a safe, leak-free install. Common warning signs include a wobbly coupling, a hiss under pressure, visible threading damage, or a loose-feeling connection. If you notice any of these, plan a full replacement rather than forcing a fix. The payoff is a tighter seal, longer hose life, and a quieter, more efficient clean.
Connector types and sizes you’ll encounter
Pressure washers use a few different connector configurations. The most common are threaded connectors (NPT or BSP-style) and quick-connect fittings. Threaded connectors provide a durable, high-pressure seal once tightened; quick-connect fittings offer faster changes but require correct mating collars and wrenches. Sizes vary by hose diameter and thread pitch, with common household setups often falling into 1/4-inch or 3/8-inch categories for hose ends and adapters. When shopping, check the thread type on both the hose and wand or pump inlet, then match them to a connector with the same pitch and compatible gasket or O-ring. If in doubt, bring a sample or photograph of the threads to a hardware store for comparison. Mismatched threads can strip quickly and cause leaks or bursts. Not all connectors are interchangeable across brands; compatibility is essential for a safe, long-lasting repair.
How to assess compatibility and plan your replacement
Before purchasing a new connector, map out your system layout: pump inlet, hose diameter, wand connection, and any adapters. The goal is a seamless path from pump to nozzle that stays secure under peak PSI. Start by measuring the hose diameter and noting whether the connector is male or female. If you can, count threads per inch or compare to a known good part. If the hose shows a worn O-ring or gasket, you’ll likely need a replacement O-ring kit along with the connector. Check if your current connector uses a built-in seal or an external gasket; in many cases replacing the entire end assembly (coupler, nut, and gasket) yields the most reliable leak-free seal. When possible, choose a connector with a robust gasket and a grip-friendly nut for easier maintenance later.
Safety and prep work before you begin
Safety first: disconnect the pressure washer from power (or ensure it’s unplugged) and close the water supply. Relieve any pressure by briefly triggering the spray gun after power-off. Gather tools and wear protective gloves; lay down a towel to catch residual spray. Clean the work area and clear grit from threads to avoid scratching fresh hardware. If you’re replacing an O-ring, keep an assorted kit on hand to select the correct size. Finally, verify you have the correct replacement part—mismatched connectors fail early and can leak under pressure. With these precautions, you’re ready to replace the connector safely and confidently.
Step 1: Depressurize and disconnect the hose
Power off the unit and disconnect from the water source, then relieve pressure by pulling the trigger on the spray gun until no water flows. This step protects you from a sudden spray and prevents damaging the threads during removal. If your model allows, unplug the unit or remove the battery to avoid accidental startup. Work in a dry, well-lit area and have a rag ready to catch residual spray. Tip: Always confirm there’s no residual pressure before touching fittings; even a small stream can cause injury.
Step 2: Remove the old connector and inspect the threads
Use an adjustable wrench to loosen the coupling while supporting the hose to prevent kinking. Remove the connector and inspect male and female threads for damage—look for stripped threads, nicks, or a torn seal. Wipe threads clean and inspect the O-ring or gasket; if damaged, replace it rather than reusing. This step helps you decide whether the issue is the connector itself or a failing gasket. Tip: Take a photo of the old connector from multiple angles to reference the replacement later and to confirm thread orientation.
Step 3: Install the replacement connector and seal
Apply PTFE tape to male threads in the direction of tightening to create a snug, leak-free seal. Hand-tighten the connector, then use a wrench to snug it an additional quarter turn—avoid overtightening, which can crush the gasket. If using an external gasket, apply a thin layer of silicone grease to extend life and ease future disassembly. Ensure the connector seats squarely with no cross-threading. Tip: Do not reuse damaged gaskets; always replace O-rings with correctly sized new parts.
Step 4: Reconnect, test, and adjust
Reconnect the hose to the pump inlet and reattach the water supply. Turn on the water supply and briefly run the gun to purge air, then gradually increase pressure and test for leaks around the new connector. If you see a drip, power down, reseat the connector, reapply sealant, and re-test. Once the area is leak-free, wipe down the work zone and store your tools for next time. Tip: Test at low pressure first and observe for a full 30–60 seconds—some leaks only appear under pressure.
Tools & Materials
- Replacement hose connector(Match thread type and hose size (e.g., 1/4" or 3/8" NPT) and ensure compatibility with your model)
- Adjustable wrench(Sized to fit the connector hex and nut)
- PTFE thread seal tape(Wrap in the direction of tightening for a good seal)
- O-ring kit (assorted sizes)(Have multiple diameters on hand to fit the connector)
- Silicone-based lubricant(Light lubrication for O-rings and seals)
- Rag or microfiber cloth(Clean threads and wipe excess sealant)
- Safety gloves(Protect hands during removal and installation)
- Wire brush or clean cloth(Remove grit from threads before threading)

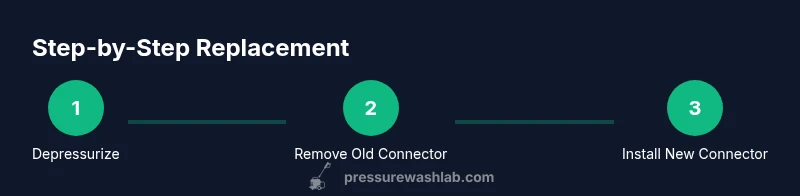

Steps
Estimated time: 45-60 minutes
- 1
Depressurize and disconnect
Power off the unit and disconnect from the water supply. Relieve any residual pressure by triggering the spray gun until no water flows. This prevents sudden bursts and protects fittings during removal.
Tip: Always verify pressure is fully released before touching any connector. - 2
Remove old connector and inspect
Loosen and remove the old connector with an adjustable wrench while supporting the hose to avoid kinking. Inspect threads and the gasket or O-ring for wear or damage; replace if needed.
Tip: Take a picture of the old part to help source the correct replacement. - 3
Install replacement and seal
Apply PTFE tape to male threads, then thread the new connector by hand and tighten with a wrench for a snug seal. If there’s an external gasket, apply a thin layer of silicone grease.
Tip: Do not over-tighten; overtightening is a common cause of leaks. - 4
Test and finalize
Reconnect the hose, turn the water on, and gradually apply pressure while watching the connection for leaks. If leaks appear, reseat and re-test until the seal holds.
Tip: Test at low pressure first, then escalate to full operating pressure gradually.
Quick Answers
What are common signs that my hose connector needs replacement?
Look for visible threading damage, a persistent drip, a loose-feeling coupling, or spraying around the connection. These signs indicate the seal or threads have degraded and replacement is advisable.
Watch for leaks, looseness, or visible wear around the connector. If you see any, replace the connector to keep the system safe.
Can I reuse an old O-ring after cleaning it?
Reusing an O-ring is not recommended if it shows any wear, cracks, or deformation. Replace with a correctly sized new O-ring for a reliable seal.
Don’t reuse a worn O-ring. Use a new one to ensure a proper seal.
Do I need to depressurize the system before replacing the connector?
Yes. Always depressurize and disconnect from the water supply before removing or installing a connector to prevent injury and damage.
Yes. Relieve pressure and disconnect power before starting.
How do I know which connector size I need?
Check the hose diameter and thread pitch on both ends of the hose and wand/pump. Match to the replacement connector’s size and threading; when in doubt, bring the old part to the store.
Measure the hose and threads, then match the connector. If unsure, bring the old part for comparison.
Is PTFE tape safe to use on pressure washer connectors?
PTFE tape is commonly used on male threads to improve the seal. Apply a thin, even layer in the direction of tightening to avoid excess build-up.
Yes, but use only a thin layer and tighten gently.
How long should replacement take?
Most homeowners complete the replacement in about 45-60 minutes, depending on connector type and accessory layout.
Typically about 45 to 60 minutes.
Watch Video
Key Takeaways
- Verify compatibility before buying replacements.
- Seal threads properly to prevent leaks.
- Inspect and replace O-rings as needed.
- Test leaks at low pressure before full operation.
