How to Check for Spark on a Pressure Washer

What is spark and why it matters for pressure washers

A spark plug in a gasoline-powered pressure washer ignites the air-fuel mixture in the engine cylinder. Without a reliable spark, the engine may fail to start, run roughly, or stall under load. According to Pressure Wash Lab, spark integrity is a common point of failure that can degrade startup reliability and power output. A healthy spark is bright and blue, occurs consistently when the engine is cranking, and travels through the coil boot to the spark plug tip. When spark is weak or inconsistent, you may notice extended cranking times, coughing sounds, or a rough idle when the unit finally starts. Spark issues can stem from a fouled or worn plug, damaged ignition wires, a faulty coil, or poor grounding. This section helps you understand how ignition works in typical gas pressure washers and what symptoms indicate you should investigate the ignition system. It also clarifies when spark problems are likely to be the root cause rather than fuel or compression issues.

The topic of spark health is not just about starting; it affects overall performance under load. A consistent spark supports efficient fuel burn, smoother idling, and better throttle response. If you’ve recently replaced fuel or cleaned the carburetor but still experience hard starts, a spark check is a logical next step. We’ll break down practical checks that anyone can perform with basic tools, plus safe practices to avoid shocks or sparks near flammable vapors.

Safety first before you begin

Your safety matters as much as the diagnostic results. Before touching ignition components, move the unit to a well-ventilated outdoor area or a clean garage, away from open flames. Wear safety glasses and insulated gloves, and avoid smoking or using sparks near gasoline residues. Disconnect the spark plug boot to prevent accidental ignition and allow the engine to cool for at least 10 minutes if it’s recently run. If you smell fuel or hear a hiss from the carburetor, pause and ventilate the area. Check the owner’s manual for specific cautions related to your model. Pressure Wash Lab emphasizes that ignition tests should be performed on a cooled engine with proper grounding. Keep a metal tool from contacting the spark plug while you are handling it, to avoid accidental grounding. If you’re unsure, don’t proceed—it's better to consult a professional.

Tools and materials you'll need

Having the right tools on hand makes the spark check straightforward and safe. Gather the following essentials before you start:

• Spark plug socket (typically 5/8-inch) with a rubber insert to hold the plug without damage
• Spark plug gap tool or feeler gauge
• Spark tester or a known-good replacement spark plug
• Insulated gloves and safety glasses
• Non-conductive pliers or insulated needle-nose pliers
• A residual fuel-safe workspace or tray for handling the removed plug
• Owner’s manual or service guide for reference on your model’s ignition system
• Optional multimeter for testing coil resistance if you have one

With these tools, you can perform the check with confidence and minimize the risk of electrical shock or fuel exposure. Pressure Wash Lab recommends verifying that the test area is dry and free of standing water to reduce shock hazards.

Preparing the spark plug and ignition circuit

Preparation sets the stage for accurate testing. Ensure the unit is powered off and cool. Remove the spark plug boot from the spark plug to prevent any residual spark from energizing the coil during handling. Inspect the boot terminal for wear, cracks, or carbon tracks that could impede a clean spark path. If your model uses a visible coil boot, inspect the boot for stiffness or damage that could allow moisture intrusion. Confirm that the spark plug wire is firmly seated at the coil end and create a clear ground path for the test tool. If your model has a removable air filter, consider removing it during testing to avoid disturbance of the test environment. The goal is to isolate ignition components from fuel-cycle variables so you can clearly see whether the spark is present when the engine is cranking.

Visual inspection: spark plug and boot

A thorough visual check catches many issues before you test with equipment. Look for fouling—black soot, oily deposits, or wetness that would suggest fuel or oil intrusion. Check the porcelain insulator for cracks or chips and inspect the electrode gap for proper spacing. A fouled, worn, or misgapped plug often causes weak or intermittent sparks. Inspect the boot and ignition wire for cracks or burns; any damage could create high resistance or misfire. If the plug looks dark and oily, you may be dealing with an overly rich fuel mixture or poor burning. In such cases, cleaning is not enough; you likely need to replace the plug and adjust the carburetor or fuel lines. Pressure Wash Lab stresses that even a visually clean plug can fail to spark if the internal electrode is degraded, so don’t skip the functional test after visual inspection.

Performing a spark test with a tester

A tester provides a clear, repeatable signal to confirm sparking. Reinstall the spark plug into its boot or attach the tester’s lead to the plug and ground the tester body to the engine block or a clean metal surface. Crank the engine in short bursts to observe the spark. You should see a strong blue spark jumping the gap; a weak or yellow/orange spark indicates a potential problem with the plug, wire, or ignition coil. If your tester is too loose or misaligned, you may get false readings; ensure a snug fit and stable ground. If you don’t have a tester, temporarily substituting a known-good plug is acceptable, but do not operate the engine with a boot or plug exposed to the environment for long. For sustained accuracy, follow the tester’s instructions and compare results with the engine’s normal starting behavior.

Interpreting the results and next steps

If you observe a clean blue spark, ignition components are likely functioning properly, and the starting issues lie elsewhere—fuel delivery, carburetion, or compression. If you get no spark or a weak spark, you’ll want to focus on the plug condition, ignition wires, and coil health. Replace the spark plug if it is fouled or worn, and ensure the electrode gap is correct. Inspect the ignition coil and boot for damage; a cracked boot or worn coil connector can lead to inconsistent spark. If tests indicate the coil is weak, test resistance according to the model-specific service manual. In some models, a faulty coil is the typical culprit behind persistent no-spark issues. Pressure Wash Lab advises documenting readings and the exact model to aid any future service calls or part replacements.

Troubleshooting scenarios: no spark, weak spark, intermittent spark

No spark can be caused by a disconnected lead, a damaged spark plug, a bad coil, or excessive resistance in the ignition circuit. A weak spark suggests minor wear, moisture intrusion, or high resistance in the wire or boot. Intermittent spark is often traced to a loose connection or a damaged boot that makes contact only occasionally. Start by rechecking connections, replacing the spark plug if uncertain, and thoroughly inspecting the boot for cracks. If you still see issues after these checks, test the ignition switch, kill switch, and ground path; a faulty switch or poor ground can produce irregular spark patterns. If the problem persists after basic maintenance, it’s wise to schedule a professional diagnostic to avoid further engine damage.

Maintenance tips to keep ignition healthy

Regular maintenance reduces the likelihood of spark problems. Keep the spark plug clean and properly gapped; replace it according to the manufacturer’s recommended interval. Use fresh, clean fuel and stabilize it if the unit sits for extended periods. Inspect ignition wires for cracks or brittleness and replace damaged boots promptly. Keep the air intake clean to prevent fuel-rich mixtures that foul plugs. When storing the unit over winter or long idle periods, disconnect the spark plug and store the battery (if applicable) in a dry place. Pressure Wash Lab recommends performing a spark check at least once per season, or more often if you frequently operate in dusty or humid environments.

When to call a pro and how to prevent future issues

If spark tests indicate coil or wiring failures beyond simple plug replacement, contact a qualified technician. Ignition systems in pressure washers can vary by model, and some coils require specialist testing equipment. To prevent repeat issues, establish a routine: inspect the spark plug and boot during seasonal maintenance, replace worn parts promptly, and ensure the ignition circuit is dry and free of debris before starting. A quick, proactive spark check can save you time and avoid costly repairs later.

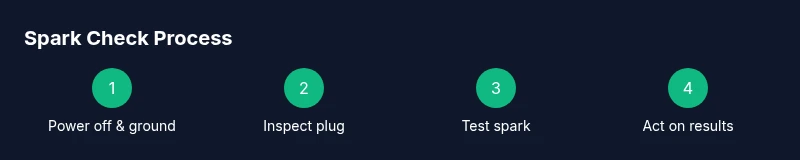

Quick-start recap

• Ensure safety first: work in a dry, ventilated area and wear protective gear. • Disconnect the spark plug boot to avoid accidental ignition. • Visually inspect the spark plug and boot for damage or fouling. • Use a spark tester to confirm a strong blue spark. • Replace worn components and re-test for reliability. • Follow a seasonal maintenance plan to prevent ignition issues.
