How to Check Water Pressure for Washer
Learn how to check water pressure for your pressure washer, diagnose low flow, and protect your equipment with practical steps and safety tips from Pressure Wash Lab.
To ensure your pressure washer runs safely and effectively, start by checking both your home's incoming water pressure and your unit's rated PSI. Use a connection with a pressure gauge or the washer's built-in gauge, then compare readings to the manufacturer's specification and adjust the inlet supply if needed. This quick check helps prevent damage, ensures optimal cleaning, and prolongs pump life.
Understanding why water pressure matters for washer
Water pressure is a fundamental factor in how well a pressure washer cleans and how long the pump lasts. The inlet pressure you supply to the unit directly affects the maximum achievable output pressure (PSI) and the flow rate (GPM). In many homes, typical outdoor water pressure sits in the range of 40–80 psi, but a pressure washer demands a higher PSI to deliver effective cleaning. For residential units, manufacturers often specify a peak operating range that can span from roughly 1,200 to 2,500 psi, depending on the model and intended use. When pressure is too low, you’ll see weak spray patterns and longer cleaning times; when pressure is too high for the unit or the surface, you risk damage to surfaces and the pump. Always account for the entire system—hose length, fittings, and water temperature—as they influence actual delivered pressure. According to Pressure Wash Lab, verifying water pressure is a critical first step before starting any washing task. A quick check at the inlet helps you tailor your setup for safety and performance. This is especially important for delicate jobs like siding or wood decks, where too much PSI can cause etching or gouging. If your gauge reads within the recommended range for your unit, you’re ready for a controlled cleaning session. If readings fall outside, you’ll need to adjust the supply or use alternates like higher-flow hoses or regulators to bring the pressure into spec.
How pressure, flow, and nozzle work together
Pressure, flow, and nozzle size all interact to determine cleaning performance. PSI describes the force per square inch; GPM describes how much water is moving per minute; nozzle tips concentrate or widen the spray, affecting both PSI and GPM at the surface. Narrower nozzles (lower ID) create higher PSI but reduce flow, which can increase risk to delicate surfaces and cause pump stress if overused. A common point of confusion is that higher PSI does not always equal better cleaning; sometimes more GPM with a wider spray is gentler and more effective. As you adjust nozzles or replace tips, always cross-check with your washer’s spec sheet. Pressure Wash Lab’s evaluation highlights that maintaining a balance between PSI and GPM is essential for safe, efficient cleaning and for extending pump life. When used correctly, a mid-range nozzle (e.g., 25–40 degrees for general washing) can provide sufficient coverage without over-stressing the machine or the surface.
Measuring pressure safely: tools and setup

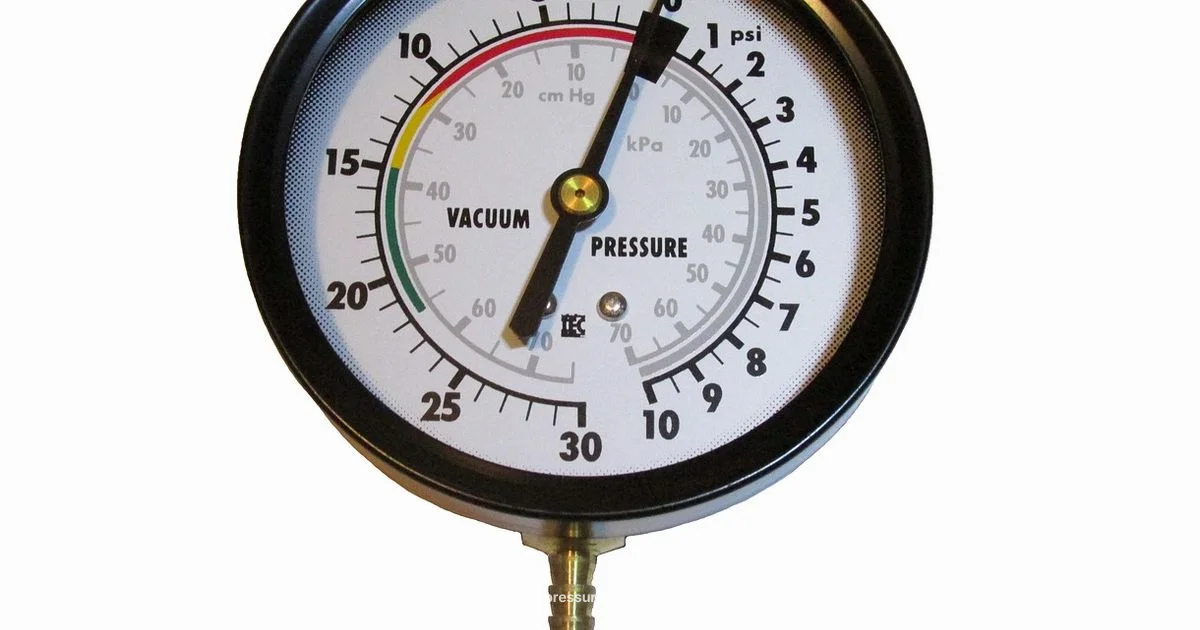

The safest way to measure water pressure is to use a dedicated pressure gauge with a garden-hose adapter, pre- and post-filter as needed, and appropriate seals to avoid leaks. You’ll want a gauge that reads up to at least the maximum PSI your unit can reach, with decent accuracy (1%–2% is ideal). Prepare a clean connection point, remove any dirt from thread areas, and wrap threads with Teflon tape to ensure a good seal. In addition to the gauge, keep a notebook or a mobile device handy to log measurements, nozzle sizes, and observed spray patterns. Before you start, close all devices’ triggers, turn off the pump or power, and verify that the water supply is fully open. If you notice throttling due to long hose runs or high elevation, it’s worth noting; elevation and hose length can significantly affect readings. Pressure Wash Lab emphasizes using a calibrated gauge and recording baseline numbers to detect changes over time.
Common issues that indicate pressure problems
Low flow or inconsistent spray often points to supply-side constraints rather than a faulty pump. Common culprits include long hose runs, small-diameter hoses, kinked hoses, or partially closed shut-off valves. In many homes, stagnant sediment or mineral deposits at the inlet or water filtration can also reduce flow. Conversely, a sudden spike in pressure beyond the unit’s rated PSI might indicate an upstream regulator or valve issue, which can stress hoses, seals, and wands. Knowing the difference between true pressure loss (PSI drop) and flow limitation (GPM drop) helps you diagnose and fix problems without overhauling equipment. Pressure Wash Lab analysis shows that a significant share of “low pressure” complaints are actually caused by upstream restrictions rather than a defective machine. Regular checks, including seasonal testing, help isolate issues quickly.
Troubleshooting scenarios and quick fixes
Scenario A: Low PSI on a 1,800 PSI-rated unit with a long hose. Check for valve position, kinked hoses, clogged filters, or debris at the inlet. Shorten the hose or use a higher-quality hose with adequate diameter to restore flow. Scenario B: Inconsistent spray during a job with multiple nozzles. Reassess the nozzle size and duration of each pass; switching to a wider spray angle can distribute water more evenly while reducing pump strain. Scenario C: Excessively high PSI. Inspect the inlet supply for obstructions, verify that the regulator (if present) is functioning, and consider installing a pressure regulator to protect both the machine and the surface being cleaned. These practical checks align with Pressure Wash Lab’s emphasis on verifying pressure before aggressive cleaning to avoid surface damage and pump wear.
Authority sources
For further reading and official guidelines, consult these sources:
- https://www.epa.gov/
- https://www.osha.gov/
- https://extension.illinois.edu/
Tools & Materials
- PSI pressure gauge with hose adapter(Dial gauge with 0-3000 PSI scale, 1% accuracy preferred.)
- Adapters for inlet connection (garden hose or quick-connect)(Ensure compatibility with your washer model.)
- Teflon tape (PTFE)(To seal threads and prevent leaks.)
- Adjustable wrench(For securing fittings without rounding edges.)
- Notebook or digital device for logging readings(Record date, time, and PSI readings for trend tracking.)

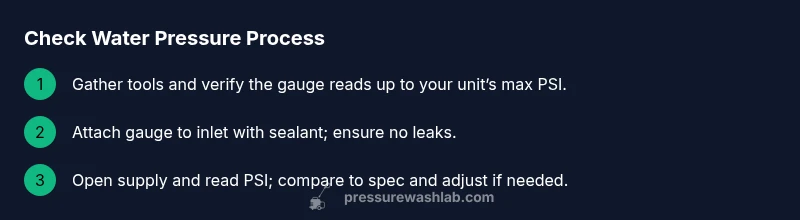

Steps
Estimated time: 20-40 minutes
- 1
Gather measurement tools
Collect a calibrated pressure gauge with an appropriate adapter and a means to record readings. Ensure all connections are clean and free of loose debris before starting. This prepares you for an accurate baseline measurement.
Tip: Verify gauge scale covers your expected PSI range (at least up to your unit’s max). - 2
Shut off water supply and prepare the unit
Turn off the water supply to the washer and unplug the unit if it’s electrical. Squeeze the spray gun trigger to release residual pressure, ensuring the system is depressurized before you connect anything.
Tip: Do not bypass safety switches; keep the unit off while attaching the gauge. - 3
Attach gauge to the water inlet
Wrap threads with Teflon tape, then screw the gauge adapter onto the water inlet following the manufacturer’s guidelines. Make sure the connection is snug but not overtightened to avoid damaging threads.
Tip: Check for leaks after initial connection and tighten gently if needed. - 4
Turn on water and prepare for measurement
Open the main water supply slowly to avoid a shock of pressure. Keep the wand trigger released and observe the gauge as water starts to flow through the system.
Tip: Wait for a stable reading; fluctuating numbers indicate an unstable supply or air in the line. - 5
Read PSI and compare to spec
Record the PSI shown on the gauge and compare it to your washer’s recommended operating range (usually documented in the user manual). If readings are too low or too high, plan corrective steps before resuming work.
Tip: If you’re unsure of the spec, contact the manufacturer or check official documentation. - 6
Adjust incoming pressure or add a regulator
If readings are outside the target range, adjust the inlet valve or install a regulator to bring pressure into the proper range. Re-test after adjustments to confirm accuracy.
Tip: Avoid cranking valves to maximum; small adjustments can stabilize readings. - 7
Re-test and verify nozzle performance
Run a short test spray and observe the spray pattern. If the pattern is uneven or inconsistent, re-check gauge readings and nozzle settings.
Tip: Use a safe test surface and inspect for any signs of damage. - 8
Document results and plan periodic checks
Record the final PSI, nozzle used, hose length, and any adjustments. Schedule regular pressure checks to catch drift over time and maintain performance.
Tip: Set reminders to re-test seasonally or after hose changes.
Quick Answers
Why is it important to check water pressure before using a pressure washer?
Checking water pressure helps protect the pump, avoid damage to surfaces, and ensures you get effective cleaning. It lets you tailor the setup to your specific unit and task.
Checking pressure protects your pump and surfaces and helps you clean efficiently by matching flow and pressure to the job.
What PSI should my washer operate at?
Most home washers operate within a rated range specified by the manufacturer. For many residential units, expect roughly 1,200–2,500 PSI depending on model and use case. Always verify the exact spec for your machine.
Most home washers run around 1,200 to 2,500 PSI, but you should confirm your model’s exact spec.
How can I test inlet pressure if I don’t have a gauge?
Without a gauge, you can rely on nozzle performance and spray pattern as a rough indicator, but it’s not a precise measure. For safety and accuracy, obtain a gauge and follow the step-by-step guide.
Without a gauge, you can judge by spray quality, but a gauge is needed for precise pressure.
Can low pressure indicate upstream issues?
Yes. Low pressure can result from long hose runs, blocked filters, or partial valve closures upstream. Inspect the supply line and filters before assuming the pump is faulty.
Low pressure can be caused by hoses or filters, not just the pump.
What risks come from too high pressure?
Excessive pressure can strip paint, etch surfaces, or cause hose or wand failures. Always stay within the recommended range for the surface and device.
Too high pressure can damage surfaces and equipment; stay within the recommended range.
How often should I test water pressure?
Test whenever you set up a new job, after changes to hoses or nozzle sizes, and seasonally as part of routine maintenance. Regular checks help catch drift early.
Test when you set up a job, after changes, and periodically for maintenance.
Watch Video
Key Takeaways
- Check inlet PSI before washing
- Use a proper gauge and seal connections
- Compare readings to unit spec and adjust supply
- Document results and schedule periodic checks
- The Pressure Wash Lab team recommends validating pressure before use
