How to Install a Pressure Washer Pump: Step-by-Step Guide
A practical, step-by-step guide to installing a pressure washer pump. Learn compatibility checks, mounting, sealing, connections, priming, testing, and maintenance to ensure reliable performance.
To install a pressure washer pump, you’ll replace the aging unit with a compatible model, secure mounting, swap seals, and reconnect hoses. According to Pressure Wash Lab, verify compatibility with your unit, gather the right tools, and follow torque specs. This quick guide outlines the essential steps, safety checks, and common pitfalls to avoid.
Safety and Compatibility Basics\n\nReplacing a pressure washer pump requires careful attention to compatibility, seals, and safety. Pumps come in several families (axial cam, wobble, and triplex piston). Most consumer units use a triplex or axial cam pump. Before purchasing a replacement, verify that the new pump matches your machine’s flow rate (GPM), pressure rating (psi), shaft size, and mounting pattern. Check the drive system: some units are belt-driven, others direct-drive; mismatches can cause shaft misalignment and leaks. According to Pressure Wash Lab, compatibility verification reduces returns and ensures pump life. Also, disconnect power and relieve internal pressure before any work. Always wear safety glasses and gloves when working around high-pressure hoses. Plan to drain water from the system if the unit is full; this reduces spill risk and helps you access bolts.
Tools and Materials Snapshot\n\nHaving the right tools and new seals on hand saves time and reduces frustration. Before you start, gather a complete kit: adjustable wrench, socket set, pliers, and a screwdriver set; PTFE thread seal tape; a new pump or seal kit matched to your model; gasket material or replacement gasket; a torque wrench (recommended); hose clamps and new high-pressure hose if required; a drain pan and rags for cleanup; safety gear (gloves, glasses). If you’re unsure about fit, contact the manufacturer for a compatibility sheet. Keeping a notebook to document hose routing helps during reassembly.\n
Step 1: Power Down and Relieve Pressure\n\nBegin by unplugging the pressure washer from the power source and moving to a well-ventilated workspace. Squeeze the trigger to release stored pressure and direct any spray away from you. If your unit has a water supply valve, close it and let the remaining water drain into a pan. This step reduces the risk of a high-pressure spray during disassembly. Pro tip: take photos of hose routing and fasteners before removal to guide reassembly.\n
Step 2: Disconnect Hoses and Remove the Old Pump\n\nWith power off and pressure released, disconnect the inlet and outlet hoses from the pump, noting their orientation. Loosen mounting bolts and slide the pump away from the mounting flange. Inspect the mounting surface for any nicks or corrosion; clean as needed and replace any worn gaskets. Keep track of all hardware so you can reuse or replace as required. Pro tip: bag small screws and label hoses as you remove them.\n
Step 3: Prepare the Mounting Flange and Seals\n\nCheck the mounting flange for flatness; if warped, you may need to skim with a gasket or shim. Remove old gasket material and clean the surface thoroughly. Compare the new pump’s gasket outline with the flange to ensure a perfect seal. If your pump uses O-rings, inspect and replace them with new ones; lubricate slightly with compatible grease to seat them.\n
Step 4: Mount the New Pump and Secure Bolts\n\nPosition the new pump so its shaft aligns with the drive mechanism, keeping the mounting holes aligned. Start bolts by hand to avoid cross-threading; snug them in a crisscross pattern. Tighten to manufacturer torque spec using a torque wrench, applying even pressure. Recheck alignment after the initial torque to ensure smooth rotation. Pro tip: torque gradually in 2–3 passes.\n
Step 5: Reconnect Inlet/Outlet Hoses and Fittings\n\nReconnect the inlet hose, outlet hose, and any quick-connect fittings in the same orientation as before. Use fresh assemblies if gaskets or seals appear worn. Hand-tighten first, then finish with a wrench—avoid overtightening which can damage threads. Ensure clamps or ferrules are secure and that there are no kinks in the hoses.\n
Step 6: Install Unloader Valve, Bypass, and Accessories\n\nIf your system uses an unloader valve or bypass, install according to the pump’s manual. Connect any detergent or foam cannons if used, ensuring correct chemical compatibility. Verify that the relief valve is set to a safe level and the wiring or solenoid (if present) is correctly connected.\n
Step 7: Prime, Bleed Air, and Water-Fill\n\nFill the pump and lines with clean water up to the fill line or reservoir, removing air pockets by opening the relief valve momentarily. Bleed air by running water through the gun at low speed while keeping the wand aimed safely away. Ensure there are no leaks at hose connections or seals.\n
Step 8: Test Run, Observe, and Calibrate\n\nPower up the unit and run at low pressure initially to observe leaks, vibration, or unusual noises. Increase pressure gradually while watching gauges and hoses. If you notice leaks, shut down and tighten fittings; confirm gasket seating. Once the system runs smoothly, record the torque and settings for future maintenance.\n
Maintenance and Troubleshooting Basics\n\nAfter installation, schedule periodic checks on mounting bolts, seals, and hose connections. Replace worn gaskets and O-rings promptly, and keep the inlet water clean to prevent debris from damaging seals. If leaks persist, inspect for misalignment or damaged components and consult the pump manufacturer’s guidelines. Pro tip: maintain a simple log of service dates and part numbers for quick future reference.\n
Tools & Materials
- Adjustable wrench(For mounting bolts and hose fittings)
- Socket set(To fit pump bolts; metric or SAE as needed)
- Pliers and screwdrivers(Flat-head and Philips for clamps and fasteners)
- PTFE thread seal tape(Seal threaded fittings; avoid over-tacking)
- New pump or seal kit(Match model and mounting pattern)
- Gasket material or replacement gasket(Ensure a proper seal on flange)
- Torque wrench(Recommended for accurate bolt torque)
- Hose clamps and new high-pressure hose(As needed for fittings and hose integrity)
- Drain pan and rags(Contain spills and keep area clean)
- Safety gear (gloves, safety glasses)(Protect hands and eyes from spray)
- Notebook or smartphone for routing photos(Helpful for reassembly)

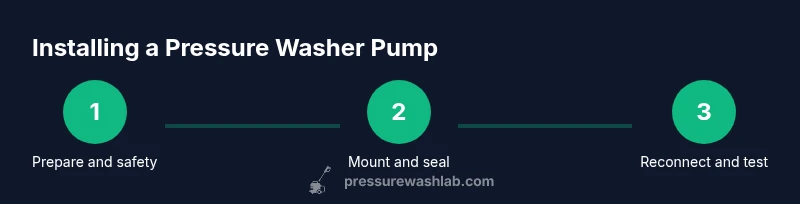

Steps
Estimated time: 60-90 minutes
- 1
Power down and relieve pressure
Unplug the unit and safely depressurize. Squeeze the spray gun to release any residual water and keep the wand pointed away from you. This prevents a high-pressure spray during disassembly and protects you from leaks.
Tip: Take a quick photo of hose routing before removing anything; it saves you time on reassembly. - 2
Document and disconnect hoses
Label or photo the inlet and outlet hoses and their orientation. Loosen attachments by hand, then finish with the appropriate wrench. Cap or bag small parts to avoid losing them.
Tip: Keep fittings organized in a labeled tray to avoid mixups during reassembly. - 3
Remove the old pump
Loosen mounting bolts and slide the pump away from the flange. Clean the mounting surface and inspect for damage or corrosion. If the flange is deformed, address before mounting the new pump.
Tip: Do not force bolts; clean threads and hand-start to avoid cross-threading. - 4
Prepare mounting and seals
Clean the flange surface, replace gaskets, and verify gasket alignment with the new pump. Check O-rings on any connection points and replace as needed.
Tip: Apply a light coat of compatible grease to O-rings for easy seating. - 5
Mount the new pump
Position the pump so the shaft aligns with the drive, then insert bolts and hand-tighten. Use a crisscross pattern to evenly distribute load, and then torque to spec with a wrench.
Tip: Tighten in two to three passes to avoid warping the flange. - 6
Reconnect hoses and fittings
Attach inlet/outlet hoses in the original orientation. Reinstall any clamps and ensure no kinks. Thread seal tape can help with threaded connections if leaks are observed.
Tip: Always test fit hoses before final tightening. - 7
Prime and bleed
Fill the system with clean water and bleed air through the gun or relief valve. Look for air pockets and air out until a steady stream of water runs.
Tip: Bleed slowly to avoid splashing and ensure all air pockets are purged. - 8
Test run and calibrate
Power on and run at low pressure to verify leaks and alignment. Increase gradually, monitor for strange noises, and adjust if needed. Document torque and settings for future maintenance.
Tip: If leaks appear, shut down, recheck seals, and verify gasket seating.
Quick Answers
Do I need to drain water before removing the old pump?
Yes. Relieve pressure, unplug the unit, and drain water to reduce spills and make disassembly easier.
Yes. Relieve pressure, unplug, and drain the water before removing the old pump.
How do I choose the right pump for my machine?
Check the GPM and PSI rating, shaft size, and mounting pattern to match the manufacturer’s specifications. Compatibility is critical for performance and longevity.
Check flow, pressure, and mounting compatibility to pick the right pump.
Can I reuse hoses with a new pump?
Only if hoses and ports are undamaged; inspect for wear, cracks, and bulges. Replace worn hoses to prevent leaks.
Only if hoses are in good condition; replace worn ones to avoid leaks.
How should I torque the mounting bolts?
Follow the pump manufacturer’s torque specs and tighten in a crisscross pattern with a torque wrench for even load.
Torque bolts per the spec, in a crisscross pattern.
Do I need special lubrication for the new pump?
Use manufacturer-approved grease on O-rings and moving seals. Do not over-lubricate as it can attract debris.
Use approved grease on seals, not too much.
Is professional help recommended for high- PSI units?
For complex drives or high- PSI systems, or if you’re unsure about alignment, seek professional installation to prevent damage.
If in doubt, hire a pro.
Watch Video
Key Takeaways
- Verify pump compatibility before replacement.
- Follow torque specs to ensure proper seal and mounting.
- Bleed air and prime with water before testing.
- Check for leaks thoroughly during the initial test run.
- Maintain records of parts and torque settings for future service.
