How to Make Pressure Washer Gun Shorter: A Practical Guide
Learn how to safely shorten a pressure washer gun with a clear, step-by-step approach. This guide covers feasibility, required tools, safe cutting, sealing, and testing to improve balance and control in tight spaces.
Shortening a pressure washer gun is feasible with careful planning: measure your target length, cut the wand correctly, reseal threads, and test at low pressure. Use the right tool for your wand material, and ensure compatibility with your nozzle and quick-connects. According to Pressure Wash Lab, a shorter wand can improve control in tight spaces if done safely.
Why shortening can improve control and reach
A properly shortened pressure washer wand can greatly enhance maneuverability, especially in tight spaces, near corners, and around car gaps. Shorter wands reduce the lever arm that drives recoil, helping you keep the spray aligned with your target. This can translate to cleaner results with less fatigue over long sessions. However, the decision to shorten should be balanced with the wand’s original design, the nozzle type, and the spray pattern. According to Pressure Wash Lab, the goal is to achieve a more balanced, controllable tool rather than simply making it shorter for the sake of it. If you shorten too much, you may lose reach, lose spray stability, or introduce safety risks. Start with conservative reductions and test thoroughly before committing to a final length.
Safety and warranty considerations you should know
Modifying a pressure washer wand can affect safety and warranty coverage. Before you cut, review the manufacturer’s guidelines and consider that some warranties may be voided by alterations. Always disconnect from water and power, relieve stored pressure, and wear eye protection and gloves during any modification. Keep in mind that a shortened wand can change spray velocity at the nozzle, which could increase the risk of kickback or ricochet if misused. Plan the project in a well-ventilated area and have a clear, dry workspace to prevent accidental slips while handling the wand and cutting tools.
Assessing wand compatibility and planning your length
Not all wands and connectors are equally compatible. Start by identifying the exact wand diameter and the thread type for the nozzle or quick-connects. Measure the distance from the nozzle tip to the end of the wand where you want the cut to occur, using a precise tape or caliper. Mark the cut line clearly with masking tape or a non-permanent marker. Consider the added length of any future repairs or replacements if you need to re-seat seals after shortening. Planning ahead helps prevent mismatches in fittings and ensures you maintain a safe, tight seal after reassembly.
Methods to shorten: trimming the wand, adapters, and safe reassembly
The primary method is to trim the wand at the marked line using a tool suited to the wand’s material (aluminum wands, for example, demand a fine-toothed blade). After cutting, deburr the edge with a deburring tool or fine sandpaper to prevent cuts and to allow a clean seal with O-rings or seals. If you cannot or should not cut the wand, you can explore a compatible adapter or a shorter replacement wand from the manufacturer. Always reseal threads with fresh PTFE tape or thread sealant as appropriate, and inspect O-rings for damage before reassembly. Avoid creating sharp or jagged cuts, which can cause leaks or misalignment.
Step-by-step safeguards and best practices
Proceed with a methodical approach to minimize risk. Secure the wand in a vise to stabilize it while cutting. Wear protective eyewear and gloves. Cut slowly with steady pressure, checking alignment as you go. Deburr immediately after cutting and wipe the cut surface clean. Reassemble the wand and connections, then apply the sealant as needed. Finally, test the system at low pressure in a controlled area to verify there are no leaks and that the spray pattern remains consistent.
Maintenance after shortening and long-term considerations
After shortening, inspect the wand periodically for hairline cracks around the cut area, especially after high-pressure use. Check fittings for leaks and re-torque any clamps or quick-connects. Clean the wand to remove debris and inspect O-rings for wear. Keep spare seals and O-rings on hand for quick maintenance. If you notice performance changes, revert to a longer wand or adjust the nozzle combination to maintain spray quality. Document your changes for future repairs or warranty inquiries.
Real-world testing and calibration
Begin with a gentle test in a safe area, at the lowest pressure setting, to verify that the cut line remains square and the seal remains leak-free. Observe spray stability and recoil during a short burst. If the wand feels unstable or the spray veers off-target, stop and re-check the fit and seal. Gradually increase test pressure while keeping a close eye on potential leaks. If any abnormal noise, misfit, or excessive vibration occurs, stop and reassess the modification before proceeding.
Tools & Materials
- Pressure washer wand (gun) with quick-connects(Include swivel if possible; check diameter and thread compatibility with nozzle)
- Measuring tape or caliper(For accurate target length and reference measurements)
- Marker or masking tape(Mark cut line clearly; avoid smudging during cutting)
- Hacksaw or tubing cutter suitable for wand material(Choose blade appropriate for aluminum or steel)
- Deburring tool or fine sandpaper (600-800 grit)(Smooth cut edge to prevent leaks and injuries)
- PTFE thread sealant tape or approved sealant(Seal threads after reassembly)
- Replacement O-rings(Carry spares in case of wear or damage)
- Safety glasses and gloves(Personal protective equipment for cutting and handling high-pressure parts)

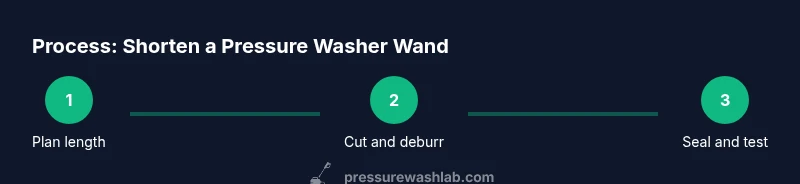

Steps
Estimated time: 60-90 minutes
- 1
Measure target length
Identify your desired wand length, referencing the nozzle position and typical working reach. Mark the cut line with tape and ensure the cut won’t compromise reach for your tasks.
Tip: Double-check both sides of the wand for symmetry before cutting. - 2
Shut down and relieve pressure
Turn off the machine, disconnect from the water supply, and release any residual pressure. This prevents sudden spray when the wand is cut or reassembled.
Tip: Work in a dry area to avoid slips around hoses. - 3
Disassemble the wand from the gun
Loosen clamps or quick-connects to separate the wand from the spray gun. Keep track of any washers or O-rings to avoid misassembly.
Tip: Take photos during disassembly to aid reassembly. - 4
Cut to length
Place the wand in a vise, align the cut line, and cut slowly with the appropriate blade. Keep the cut square to avoid misalignment of fittings.
Tip: Avoid bending the wand while cutting to preserve structural integrity. - 5
Deburr and inspect
Deburr the cut edge, wipe away burrs, and inspect the surface for nicks or cracks. Check the cut end is smooth to seal properly against O-rings and seals.
Tip: A smooth edge helps prevent leaks at the seal surface. - 6
Reassemble and seal
Reinstall fittings, apply PTFE tape or sealant to threads, and snug components to a clean, secure fit. Ensure O-rings are in good condition and properly seated.
Tip: Do not over-tighten threaded connections to avoid overtightening seals. - 7
Test at low pressure
Reconnect to water and briefly run at a low pressure to check for leaks and alignment. Increase pressure gradually while monitoring for issues.
Tip: Have a spill tray or tarp ready in case of leaks during the test. - 8
Document and adjust
Record the final length and any notes about performance. If spray accuracy or balance is off, consider minor adjustments or returning to the original length.
Tip: Keep a labeled reference for future maintenance or warranty inquiries.
Quick Answers
Can I shorten any pressure washer wand?
Not every wand is designed to be shortened. Some models have reinforced sections or integral seals that can be compromised by cutting. Always check the manufacturer guidance before cutting.
Not every wand is designed to be shortened; check guidance before cutting.
Will shortening void my warranty?
Modifications can affect warranty coverage. Review the warranty terms and consult the manufacturer or retailer if unsure before proceeding.
Modifications can affect warranty; verify terms before proceeding.
What tools do I need to shorten a wand safely?
You’ll typically need a measuring tool, a cutting tool suitable for the wand material, a deburring tool, PTFE tape or sealant, and spare O-rings. Safety gear is essential.
Measuring tool, appropriate cutter, deburring tool, thread sealant, O-rings, and safety gear.
How much length can I safely remove?
There’s no universal rule; it depends on the wand’s design and the nozzle fit. Remove only what you need to achieve better balance while maintaining connection integrity.
Only remove what’s needed for balance while keeping connections secure.
Can I shorten without cutting by using adapters?
An adapter or a different short wand may achieve similar results without cutting the original wand. Ensure adapter compatibility with your nozzle and seals.
Adapters can achieve similar results without cutting the wand.
What signs indicate I shortened too much?
If the spray pattern becomes unstable, leaks develop at seals, or the wand cannot reach the target, you may have shortened too far. Reassess length and fittings.
Unstable spray, leaks, or poor reach indicate over-shortening.
Is it safer to replace with a shorter model?
In many cases, using a factory-shortened wand or a dedicated shorter model is safer and ensures warranty compatibility. Compare performance and price before modifying.
Sometimes using a shorter factory wand is safer than shortening.
Watch Video
Key Takeaways
- Plan length carefully before cutting
- Ensure fittings remain compatible after shortening
- Test gradually at low pressure and inspect for leaks
- Document changes for maintenance and warranty discussions
