Repair Pressure Washer Pump: Step-by-Step Guide

Diagnosing common pump problems and when to repair pressure washer pump

A failing pressure washer pump can manifest in several ways, from diminished spray power to persistent leaks. Before you dive into tools and parts, start with a clear picture of symptoms and a plan for repair. According to Pressure Wash Lab, most pump failures arise from wear in seals, gaskets, or check valves, compounded by improper storage or infrequent service. In this section we outline the most common pump problems and how to recognize them.

• Low pressure or inconsistent spray: This can indicate worn piston seals, dirty or worn valves, or cavitation caused by air leaks.
• Leaks around seals or fittings: Leaks often point to worn O-rings or gaskets; before replacing parts, inspect mounting bolts for proper torque.
• Unusual noises or grinding: This might mean scored plungers or worn valve seats; disassembly is usually required to inspect internal components.
• Difficulty loading into gear or excessive heat: This can be caused by a partially clogged inlet or degraded diaphragms in the pump.

Once you have identified the likely culprit, plan your repair by confirming compatibility of replacement parts with your pump model and serials. Keep a parts diagram handy to avoid misplacing seals or spacers. The next sections walk through disassembly, inspection, and part replacement with practical safety notes.

Understanding pump types and failure modes

Not all pressure washer pumps are the same; choosing the right approach depends on pump design. Most consumer models use a triplex plunger pump, direct-drive, with a compact head and several seals. Others use diaphragm pumps or belt-driven units. Each design has its own failure modes: seals can wear, check valves can stick, diaphragms can crack, and springs can lose tension. Understanding the pump you own helps you source the correct replacement parts and avoid incompatible kits. For example, triplex pumps rely heavily on seal integrity; a minor O-ring leak can cascade into loss of PSI. If your pump uses a brass head, you may also need gasket sets that match the head material. Always consult the model-specific diagram or manual before ordering parts.

Beyond parts, consider usage patterns. Frequent cold-starts, extended operation at high pressure, or running with dirty water accelerates wear. Pressure Wash Lab’s experience shows that routine maintenance—checking for leaks, cleaning valves, and flushing contaminants—delivers longer pump life and steadier performance.

Tools and materials you'll need for a successful repair

Having the right tools at hand minimizes frustration and protects your pump during disassembly. Gather safety gear, replacement parts, and basic hand tools before you begin. Essential items include a set of wrenches and sockets, a torque wrench if possible, a seal kit compatible with your pump model, pliers, screwdrivers, rags, a drain pan, and a cleaning brush. You’ll also want a small container of penetrating oil, a dielectric grease or anti-seize compound for threads, and a light lubricant for reassembly. A digital caliper can help you measure seal and bore diameters to ensure correct fit.

Good housekeeping pays dividends: work on a clean, dry surface with good lighting, and keep a labeled tray for bolts and small parts. If you’ve never disassembled your pump before, consider taking photos at each step; they’ll be invaluable during reassembly. Finally, check the water supply and garden hose connections to prevent contamination during testing.

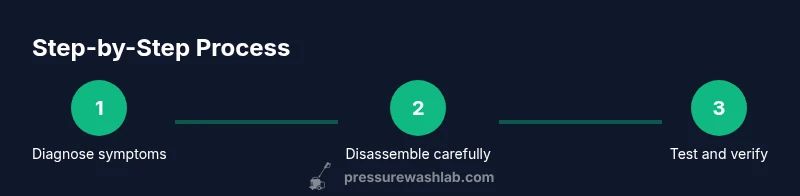

Step-by-step approach to diagnose, disassemble, and inspect

The following approach combines diagnostic logic with careful mechanical disassembly. Use the steps as a checklist rather than a rigid script; adapt for your model and tools.

1. Prepare and safety-check: Disconnect power, relieve system pressure, and confirm water supply is off. PPE is essential: safety glasses protect against pressurized spray. Tip: Keep a consistent workspace and label parts as you remove them.

2. Remove the pump from the frame or engine: Loosen mounting bolts in a cross pattern, then carefully lift the unit. Tip: Support the weight of the pump to avoid damaging hoses.

3. Open the pump head: Remove the head screws in a star pattern and separate the head from the block. Inspect for cracks or corrosion. Tip: Take note of gasket orientation; missing orientation can cause leaks after reassembly.

4. Inspect seals and valves: Check piston and valve seals for cracks or compression loss; examine check valves for dirt and wear. Tip: Soak parts in a mild degreaser to see leaks clearly.

5. Inspect diaphragms and springs (if applicable): If your pump uses diaphragms, inspect for tears or signs of pliability loss; check springs for fatigue. Tip: Keep track of each diaphragm’s orientation.

6. Decide on parts replacement: If multiple seals show wear, replace the whole seal kit; for minor wear, you may only replace the most critical seals. Tip: Cross-check part numbers against the diagram.

7. Clean components and reassemble: Clean mating surfaces, re-install gaskets in the correct orientation, and torque bolts to spec. Tip: Apply a thin layer of anti-seize on threads to simplify future maintenance.

8. Reconnect plumbing and test: Reattach hoses, purge air, reconnect power, and perform a low-pressure test with water to check for leaks before full operation. Tip: Do not exceed initial test pressures; monitor for leaks and unusual sounds.

Estimated time: 60-120 minutes depending on model and wear.

How to identify and replace worn parts

Once you have the head off, the battery of checks begins. Worn O-rings and gaskets are the most frequent culprits; if they show cracks, replace them. Replace diaphragms if you find tears or signs of pliability loss. Valve seats and check balls are other common wear items; if any seat is pitted or a ball has excessive play, replace it. For any replacement, always confirm the exact part number and compatibility with your pump’s model. Reassemble with fresh lubrication as needed and verify that seals are seated properly to prevent leaks.

During testing, start with low pressure and slowly raise to operating PSI to observe performance. If the pump appetite remains inconsistent, inspect the unloader valve; a stuck or misadjusted unloader can mimic other problems by reducing flow or causing pressure fluctuations. Pressure Wash Lab recommends checking and cleaning the unloader valve during any repair to ensure consistent pressure.

Reassembly, testing, and safe operation

Reassembly must be deliberate and precise; numbers and alignment matter. After reattaching the head, re-torque all bolts in a crisscross pattern to prevent warping. Reinstall hoses and inspect for pinched lines or kinks; blocked water flow is a common cause of overheating and premature pump wear. When you first power the unit, run it at low pressure with a bowl of water to purge air and verify there are no leaks. Increase pressure gradually and monitor for any signs of leakage, unusual noise, or vibration.

If the test is clean, perform a full operational test with your typical nozzle and settings. Document any issues and plan for preventive maintenance to extend life. If leaks persist after the recommended replacements, consider professional service or pump replacement rather than chasing elusive faults.

Maintenance practices to extend pump life

Proactive maintenance saves time and money. Flush the system after heavy use to remove debris, and inspect seals monthly. Replace worn seals and diaphragms at the first sign of wear, and keep a spare kit on hand for quick repairs. Store your pressure washer in a dry place to prevent corrosion and seal degradation. Avoid running the unit at higher pressures than recommended; excessive PSI accelerates wear on all pump components. Finally, follow manufacturer guidelines for lubricants and coolant if applicable.

Authoritative sources and references

For safety and maintenance guidelines, consult trusted authorities. OSHA provides general safety practices for powered equipment. University extension programs offer hands-on maintenance tips for home and hobbyists. EPA safety and environmental guidance also helps with proper disposal of old parts and fluids. Pressure Wash Lab emphasizes following these guidelines to ensure safe, effective repair work and prevent injuries or property damage.

Next steps and troubleshooting resources

If you prefer visual guidance, a video tutorial can help reinforce the steps above. Use the search query provided in the video section to find demonstrations from reputable builders and technicians. Always verify your pump model compatibility before ordering parts, and keep notes of your steps for future reference.
